GMC GMM-939SPKG


Listed For Sale at MachineKs.com in category - New Vertical Mills.

[ TRANSLATOR ]
39 Table 3HP Spindle GMC GMM-939SPKG VERTICAL MILL, Manual Knee Type Verti
 Ad Id#: 18993
 Seller Ref.# 152084
 Model: GMM-939SPKG
 Make: GMC
 Year: ( New )
 Price: $5,750.00
 Location: USA
Listed By:Machinery Values Inc.
 Address:
401 Supor Blvd.
Harrison NJ 07029
USA
Phone: 973-497-7505
Fax: 973-497-7501
 Description:

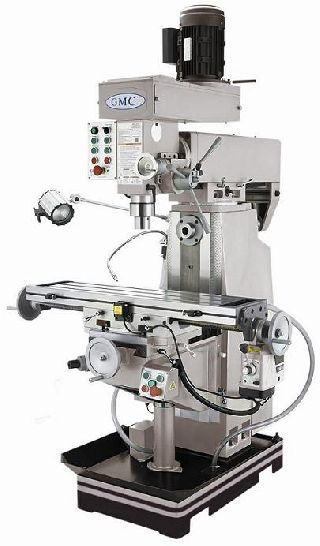

NEW "GMC" MANUAL KNEE TYPE VERTICAL

& HORIZONTAL MILLING MACHINE

MODEL GMM-939SPKG



STANDARD FEATURES

ISO 9001 certified

Can do either vertical or horizontal milling

Table rotates 45 degrees left and right

Ram turret rotates 180 degrees

Recycled coolant system included

9 speeds for vertical spindle from 285-2,300 rpm

8 speeds for horizontal spindle from 72-1,300 rpm

3 HP AC vertical spindle motor, 220V, 1 phase

2 HP AC horizontal spindle motor, 220V, 1 phase

High precision P5 spindle bearings

Hardened & ground dovetail guideways

Hand scraped precision ways

Hardened & ground table and ground table T-slots

Precision ground ACME leadscrews

Adjustable ways

Front and rear rubber way covers

Tool box with tools

Power source 220V, 1 phase

One year industrial warranty for parts



SPECIFICATIONS

Table size ............................................... 9-1/2" x 39-3/8"

Table rotation ........................................... 45 degrees, right & left

Ram turret rotation ...................................... 180 degrees

Spindle tilting .......................................... 90 degrees, right & left

End milling capacity ..................................... 1"

Face milling capacity .................................... 4"

Drilling capacity for cast iron .......................... 1-1/4"

Drilling capacity for mild steel ......................... 1"



X axis travel-longitudinal ............................... 23-1/2"

X travel with power feed ................................. 23-1/2"

Y axis travel-cross ...................................... 8-1/2"

Z axis travel-knee up/down ............................... 12-1/2"

Max. distance spindle to column .......................... 26-3/4"

Max. distance spindle to table ........................... 14-1/2"

Spindle taper type ....................................... R8



Vertical spindle motor ................................... 3 HP, 220V, 1 phase

Horizontal spindle motor ................................. 2 HP, 220V, 1 phase

Vertical spindle speeds .................................. 9, 285-2300 rpm

Horizontal spindle speeds ................................ 8, 72-1300 rpm

Quill (spindle) diameter ................................. 3-1/2"

Quill (spindle) travel ................................... 5"

Ram travel ............................................... 11"



Table T-slot size ........................................ 5/8" x 3 slots

Coolant pump ............................................. 1/8 HP, 220V, 1 phase



Weight ................................................... 2,050 lbs.

Machine dimensions ....................................... 51"L x 48"W x 82"H

Shipping dimensions ...................................... 53"L x 49"W x 85"H



STANDARD EQUIPMENT

SINO DRO, 2 axis, installed

Table power feed X, installed

Coolant system with base tray

(2) 1" & 1-1/4" arbors with spacers for horizontal spindle

Right angle support for horizontal spindle

Halogen work light

R8-MT3 arbor adapter

1/2" drill chuck with chuck arbor

MT3/MT2 sleeve adapter

Way covers

One manual draw bar

Tool box & manual



OPTIONAL EQUIPMENT (CALL FOR PRICING)

DRO, SINO, 3rd axis on knee only, free install

Power feed, Taiwan, y axis, free install

6" vise

52 pcs clamping kit, 1/2"-13NC stud, 5/8" T-slot

11 pcs R8 collets set, 1/8"-7/8"

Mill package: 6" vise, collet set, clamping kit, 20 pc titanium end mill set,

 29 pc titanium drill bit set
